【product features】
★AD5201 is compatible with RJ45 and UTP + / - binding post,
★Fix the requirement of various connections
★Effective transmission distance 0~1640 yards (0 ~ 1500 meters),
★Black and white signal can be transmitted a longer distance
★Pretty good color image
★Real-time NTSC, PAL and AV signal transmission
★The brightness and contrast are adjustable
★Strong interference suppression
★Outstanding lightning protection
★Power with anti-jamming design
★High quality rust-resisting metal shell
★double BNC outputs
★Full copper BNC terminals

          【Technical Parameters】
Video:
Frequency Response: DC - 6MHz
Attenuation: maximum 0.5 dB
Common-mode/ Differential mode rejection : 15KHz: 6MHz  60dB typical
Impedance: BNC coaxial cable: 75 ohm
                       twisted pair wiring pillar: 100 ohm
Power supply: DC 9-12 V , maximum 1000mA
Cable type: Unshielded Twisted Pair, 24-16 AWG cord
Cable category : 5th  category  or better (CAT - 5/5E / 6 UTP)
Cable impedance: 100 ± 20 ohm
Internal resistance:  109 yards (100 meters)/less than 10 ohm
Distributed capacitance: no more than62pF /m
DC loop resistance: 18 ohms /  109 yards (100 meters)
1Requirements
Working temperature: -2°~158°F (- 20 ° ~ 70 ° c)
Relative humidity: 0 ~ 95% (non-condensable)
Storage temperature: -38°~302° F (- 40 ° ~ 150° c)
Transient Suppression
1.2 muon S x 50 μS
3000V 8 muon S x 20 μS grounding terminal access the earth

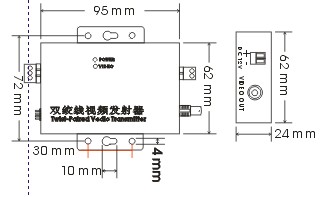

         【Product Size】
