Product Feature

1,low power curcuit desiqn, 6-inch bubble
2,0.9 motor drive ,1/32Stepover power drive and curcuit drive subdivision, smooth operation, accurate positioning
3,OSD English menu display, operate conveniently,DSPdesign,good stablity.
4,Built-in memory to store the setting data ,which can not be lost after power off
5,Continuous 360°pan, tilt turning(180° auto flip)
6,variable pan speed-between 0.1-120°/s
   variable tlit speed-between  0.1-100°/s7,auto flip 360°continous pan8,256preset ,5tour routes
9,Turning speed autometically adjusts along with lens zooming to locate object exactly by large magnification
10,peset point function, position and duration adjustable
11,call preset position speed:pan 250°/s,tilt200°/s,
12,SONY, HITACHI, SANYO SAMSUNG, LG, CNB, CANON optional
13,protocol compatible; RS-485interface

14,weather proof design,protection grade IP6515,built-in heater and blower
16,built-in power surge/ lighting protection


Product Parameters

pan movement : 360°continuous pan rotation
Vertical movenment :180°turn over automatically ,on shadow region
pan : 0.1-120°/s,
tilt : 0.1-100°/s,
presets : 256cruising route : 5,16presets each routescan automatically :speed adjustable
camera recognition : SONY, HITACHI, SANYO SAMSUNG, LG, CNB, CANONbaud rate : (RS-485)2400/4800/9600/19200bps
address range : 0-255

Structural Parameters

Upper shield: high strength double layer aluminum alloy,high temperature resistance, corrosion resistant

Installation method: wall mouning/lifting/inseting/ceiling

Environment: indoor/outdoor

Input voltage :DC12V

power consumption : 18W  indoor , 50W  outdoor

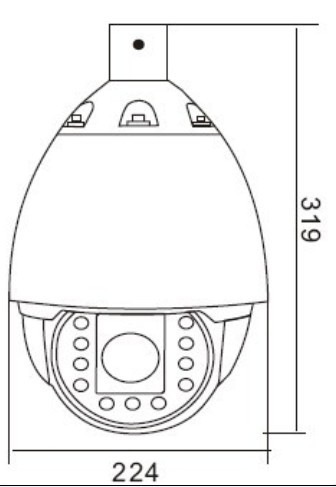

Product Size
